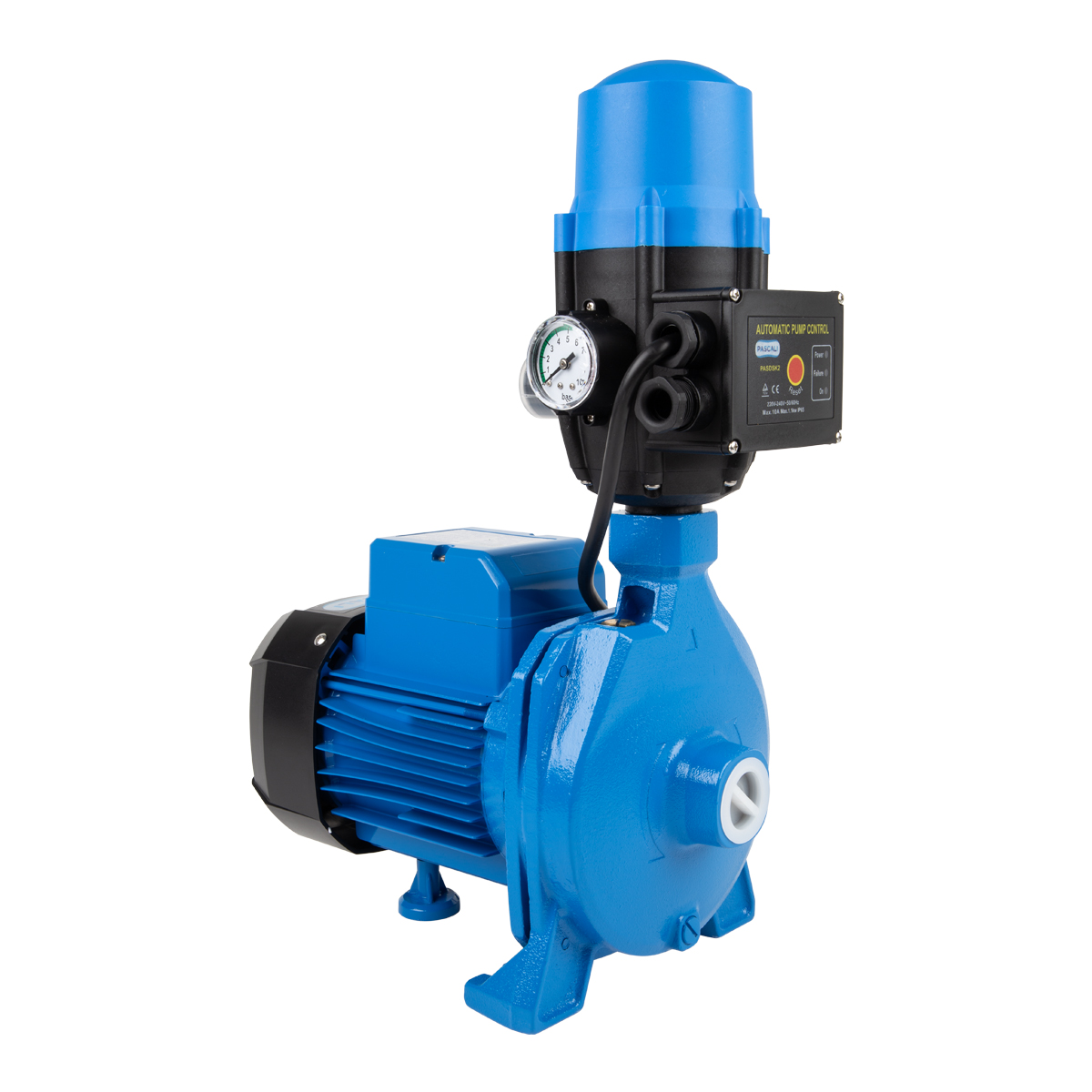

SINGLE IMPELLER CENTRIFUGAL PUMP WITH FLOW CONTROL 0.55KW

PASCPM146C

PASCALI single impellor centrifugal pump with flow control. For household, civil and industrial applications 220/230V 0.55Kw 50Hz IP44.

APPLICATION

Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.

OPERATING CONDITIONS

– Liquid temperature up to 60°C
– Ambient temperature up to 40°C
– Total suction lift up to 7 m
– Max. working pressure: 6 bar

MOTOR

– Two-Pole induction motor
– Insulation Class B
– Protection IP44

MATERIALS

– Cast Iron Pump body
– Cast Iron Motor support –
– Brass Impeller –
– S/Steel or CS45# Motor Shaft
– Ceramic/Graphite Mechanical seal –
– Copper Winding

PASCALI single impellor centrifugal pump with flow control. For household, civil and industrial applications 220/230V 0.55Kw 50Hz IP44. Delivery QMAX 6 cubic meter/hour and H.Max 2.6Bar.
Thermal overload protection, 100% copper winding, and brass impeller.
